| 2011-09-12 |
|
|
 |
| Brand
name: |
Triplett |
|
Modell: |
630 |
|
Serial no.: |
29268 |
| DC
range: |
0 - 1200 V in
5 steps |
| |
(6000 V via
6000 V DC connector) |
| AC
range: |
0 - 1200 V in
5 steps |
| |
(6000 V via
6000 V AC connector) |
|
Current: |
1.2 - 12 - 120 mA;
60 mmA |
| |
(DC only) |
|
Resistance: |
Full scale 1 kOhm; |
| |
ranges: x 1 - x
10 - x 1,000 - x 100,000 |
|
Output: |
connector
present |
|
Sensitivity: |
DC: 20,000 Ohms/Volt;
AC: 5,000 Ohms/Volt |
|
Battery: |
Berec B123 - 30
V
"D" cell (1 x) |
|
Patents: |
not mentioned |
| Year
of birth: |
1930's ~ 1940's ? |
|
|
|
|
Accessories: |
test leads |
|
Manual: |
|
|
Condition: |
leather strap present |
|
Dimensions: |
H:
188 x W 139 x D 81 mm |
|
|
|
|
|
|
| |
|
|
 |

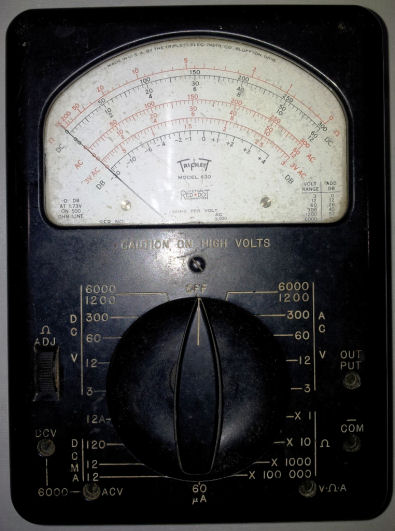

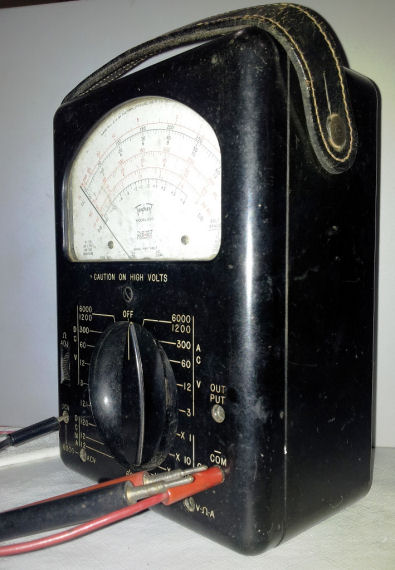

Leather strap for your
comfort! |
| |
|
|
 |

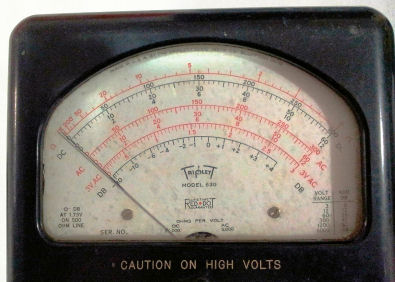

A large scale is provided. 3 -
6 - 12 divisions indicate use for radio repair, typical battery and B+

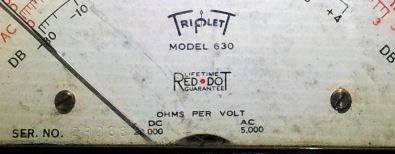

values. Notice the Red Dot logo: lifetime warranty! |
| |
|
|
 |
It is a 20.000 Ohm/Volt DC
meter. So suitable for tube radio/tv repairs. On old schematics is
mostly mentioned with what type of meter the voltages mentioned in the
diagram, are measured. This to avoid wrong measurement. |
| |
|
|
 |

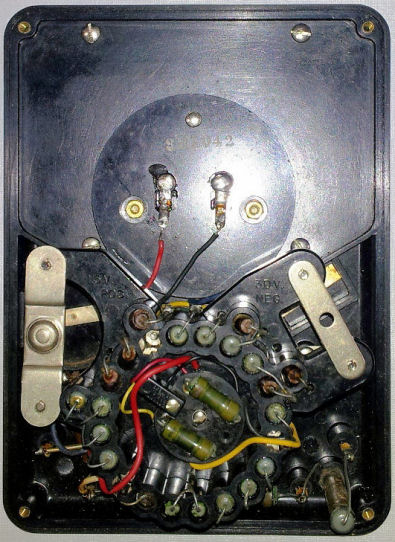

The interior. Custom made
switch, all moulded in Bakelite. Left: battery compartment for D-cell and
on the right: 30 V battery. |
| |
|
|
 |

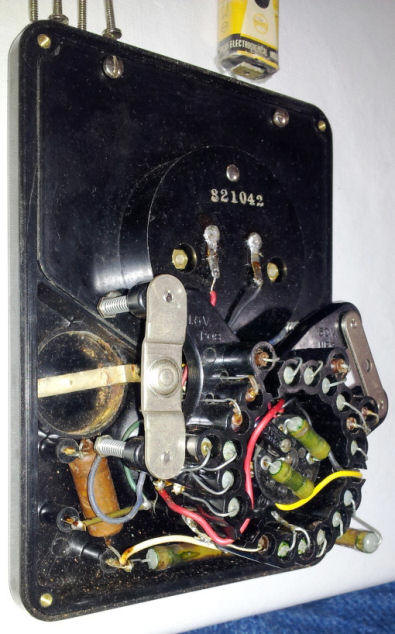

Switch, seen from the side. The resistors lie in a sort of place holder. |
| |
|
|
|
|
|
| |
|
|
 |
The Novel BL020 battery gave 30
V. |
|
| |
|
|
